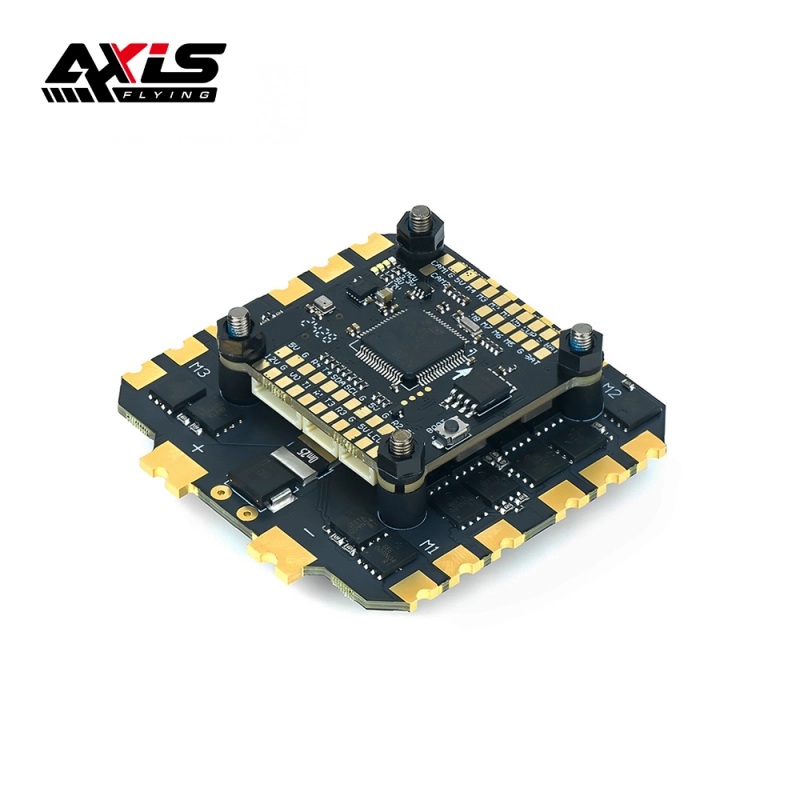

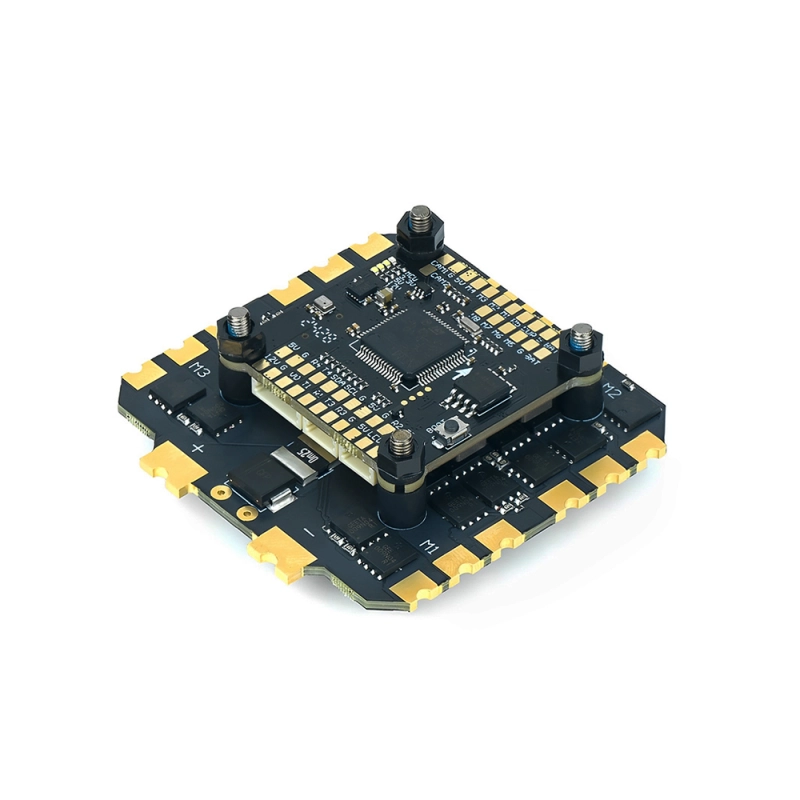

ARGUS Argus ECO Stack - F7 FC + 100A 4-in-1 BLHeli_S ESC 3-8s Lipo
  • ARGUS Stack Thumbnail 1
  • ARGUS Stack Thumbnail 2
  • ARGUS Stack Thumbnail 3
  • ARGUS Stack Thumbnail 4
  • ARGUS Stack Thumbnail 5
  • ARGUS Stack Thumbnail 6

ARGUS Argus ECO Stack - F7 FC + 100A 4-in-1 BLHeli_S ESC 3-8s Lipo

5.0 (1 Reviews) 155 sold
$161.90
STACK:
ARGUS F722 100A 3-8S STACK
QUANTITY
SHIPPING: $ 20.00
to Bolivia via DHL
Make Money
Like this product?
Join us to promote this product via an exclusive coupon code !

Your Shopping Cart

Total $0.00

Taxes and shipping calculated at checkout

Message Us

ARGUS ECO F722 100A 3-8S STACK

🛠️ Flight Stack Specifications

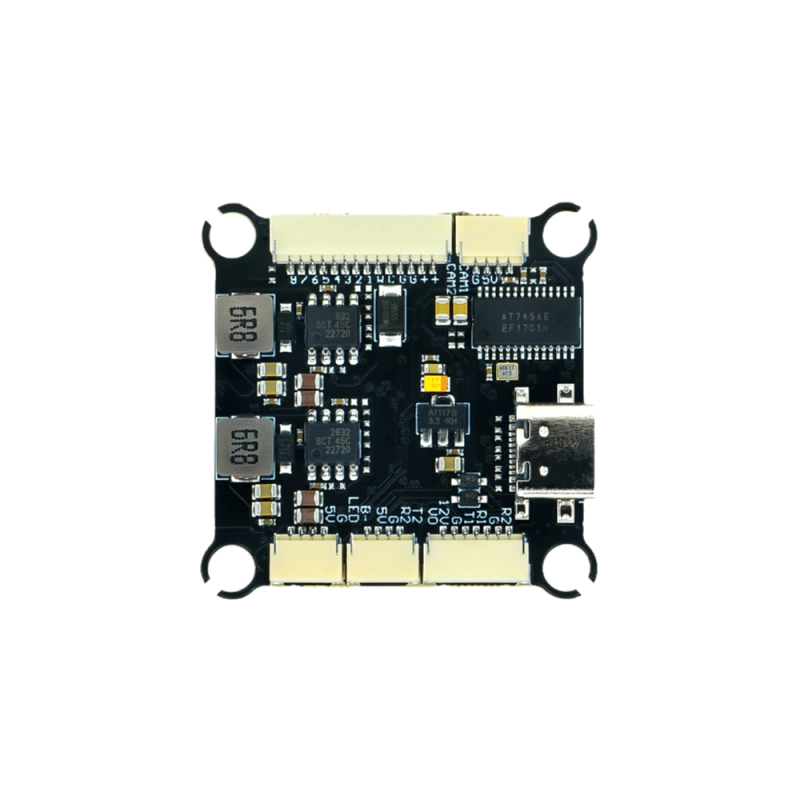

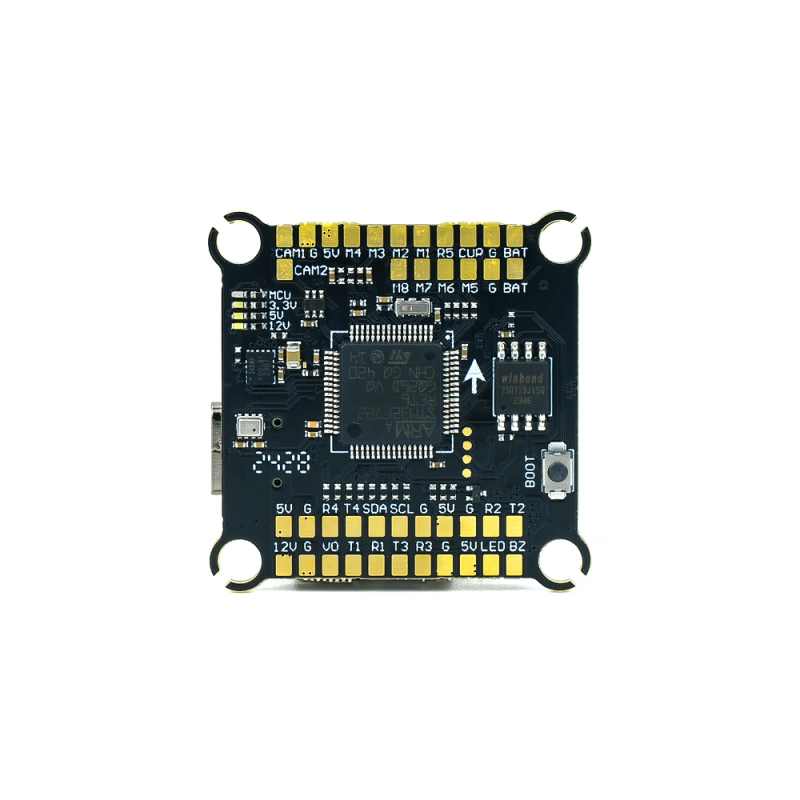

Flight Controller (FC)

  • Microcontroller Unit (MCU): STM32F722 operating at 216MHz
  • Inertial Measurement Unit (IMU): ICM42688P gyroscope
  • On-Screen Display (OSD) Chip: AT7456E
  • Flash Memory: 16MB for blackbox data logging
  • UART Ports: 6
  • LED Support: Dedicated pad for WS2812 programmable LEDs
  • Mounting Hole Dimensions: 30.5 x 30.5 mm with 3 mm diameter holes
  • Barometer: Integrated for altitude measurements
  • Buzzer: Integrated for audible alerts
  • Firmware: Compatible with Betaflight BEASTFPVF722
  • Physical Dimensions: 38 x 38 mm
  • BEC Output: 5V at 3A and 9V at 2A

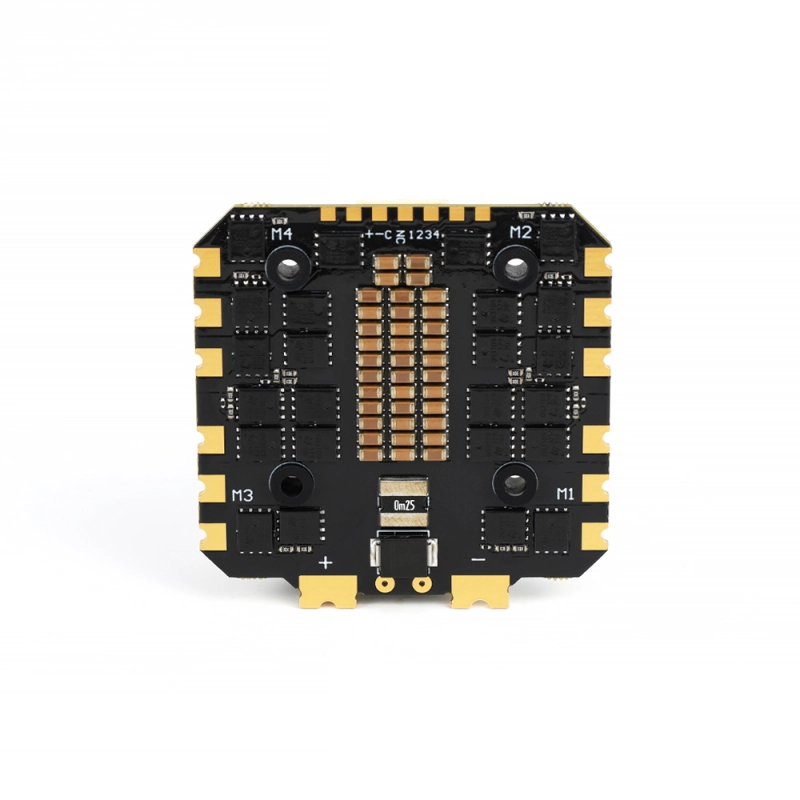

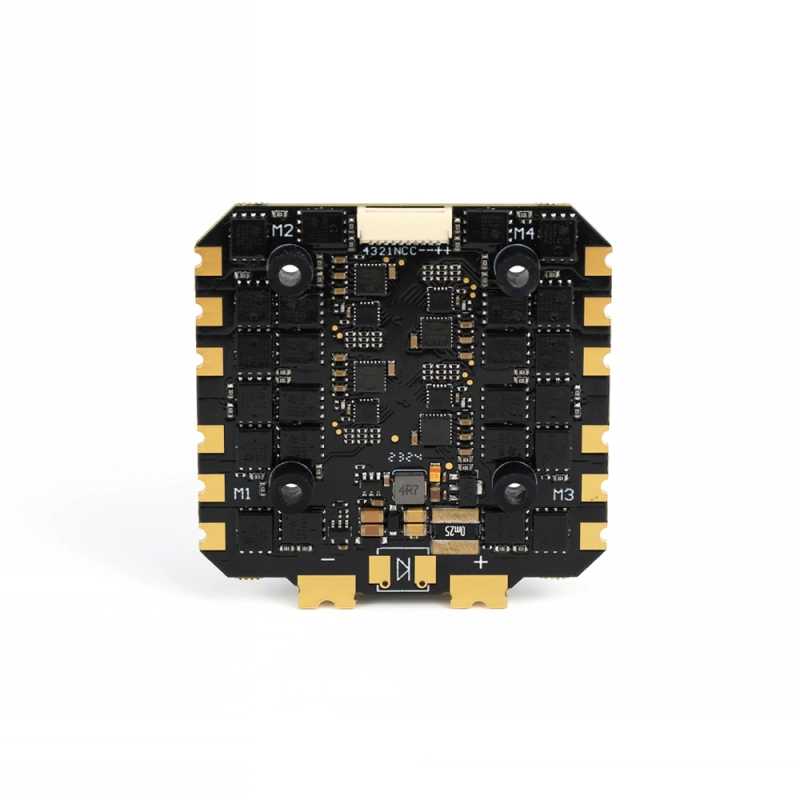

Electronic Speed Controller (ESC)

  • Continuous Current: 100A
  • Input Voltage Range: Supports 3S to 8S LiPo batteries
  • Physical Dimensions: 57.6 x 62.8 mm
  • Weight: 40g
  • Microcontroller Unit (MCU): BB21
  • Firmware Version: JH15 16.43
  • Current Sensor: Integrated for real-time monitoring
  • BEC: Not included
  • Supported Protocols: DShot150, DShot300, DShot600, MultiShot, OneShot, PWM

This configuration offers a robust solution for FPV drone enthusiasts seeking high-performance flight control and power management. If you require further customization or additional information, feel free to ask!

Download

FC Connection Instructions
FC Connection Instructions
RAR 1.92MB

CUSTOMER REVIEWS

5.0 1 Reviews
Reviews
With Media

YOU MAY LIKE

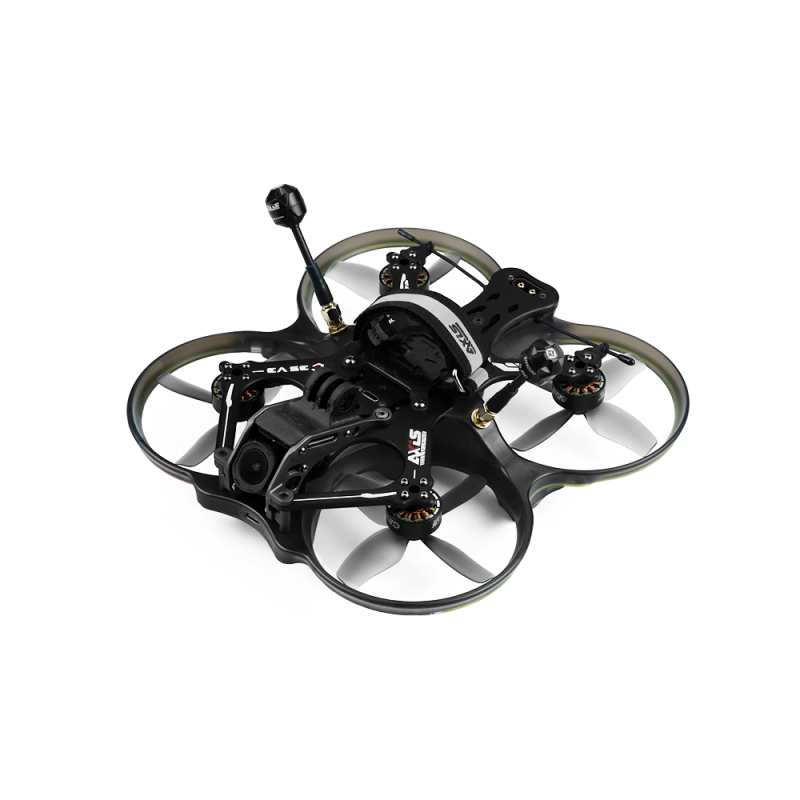

Cineon C35v3 3.5inch cinewhoop
New

Axisflying cineon C35v3 3.5inch cinewhoop / cinematic drone with GPS - 6S BNF DJI O4LITE/O4PRO

$380.00
MANTAS5 SE DeadCat-DC DJI O4 Pro
New

Axisflying MANTAS5 SE DeadCat-DC DJI O4 Pro Air Unit 5 inch Drone with GPS -6s

$450.00

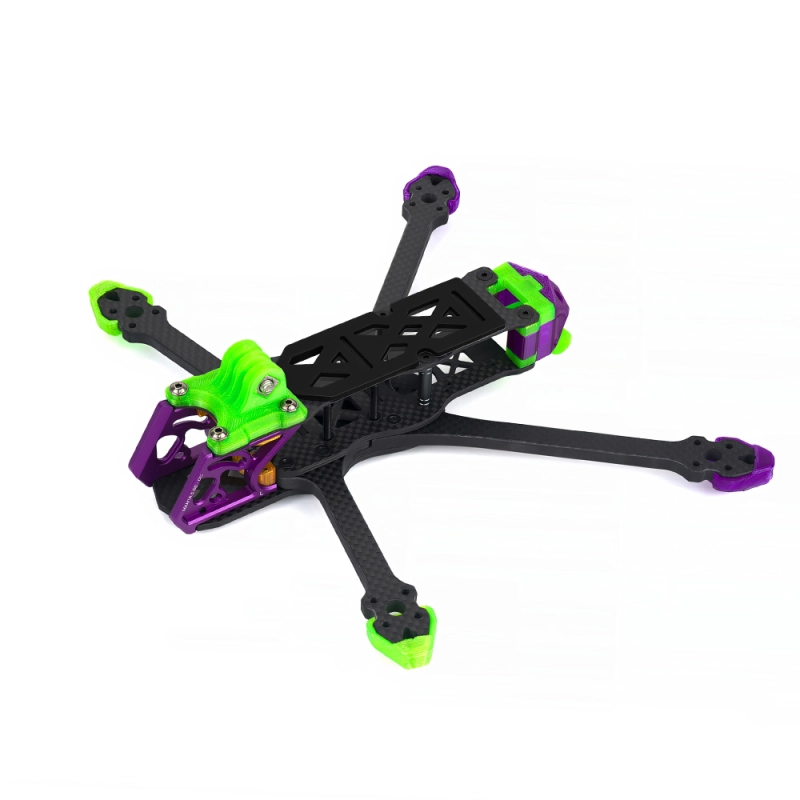

DeadCat Manta 5 SE DC Frame
New

Axisflying DeadCat Manta 5 SE DC Frame For DIY FPV DJI O4 PRO

$41.90

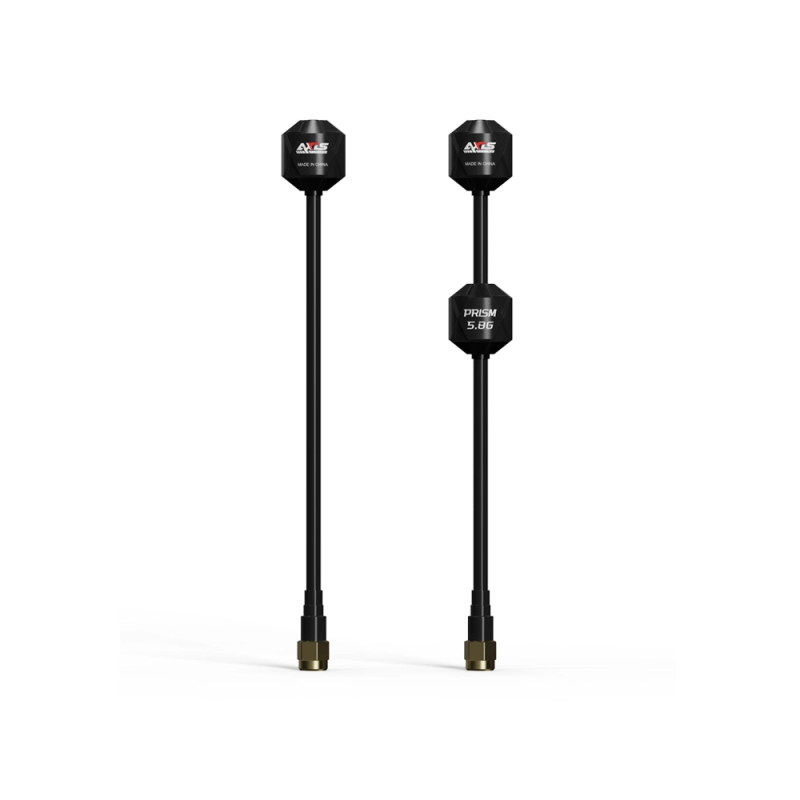

RHCP Single / Dual 5.8G SMA Internal Thread
New

Axisflying RHCP Single / Dual 5.8G SMA Internal Thread Prism Antennas with inner Pin

$12.99

Best Sellers

DJI O4 Lite drone lens modification parts

Axisflying adapts to DJI O4 Lite drone lens modification parts image transmission heat dissipation aluminum parts

$4.90

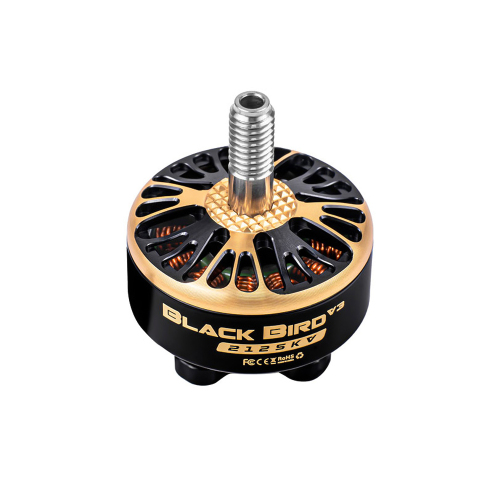

BlackBird v3 2207 5inch brushless top quality

Axisflying co-brand with BlackBird v3 2207 5inch brushless top quality fpv freestyle 5bang motor

$27.50

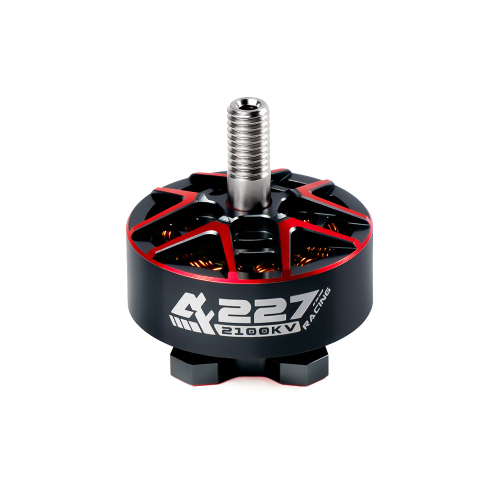

Brushless Motor Racing AF2207

Axisflying Brushless Motor Racing AF2207 / For FPV Drone / Racing / Freestyle / Bando / 5 inch

$21.90

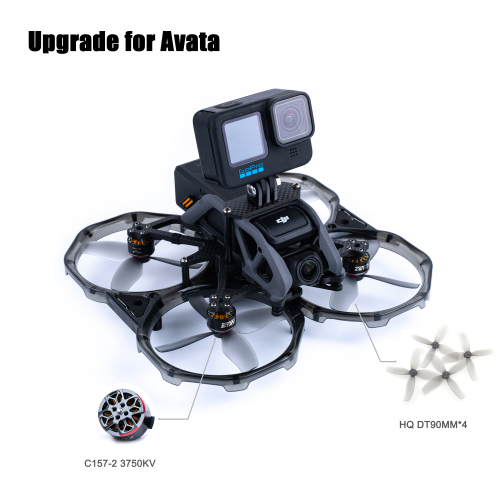

AVATA 3.5 upgrade frame kit
